/ EN

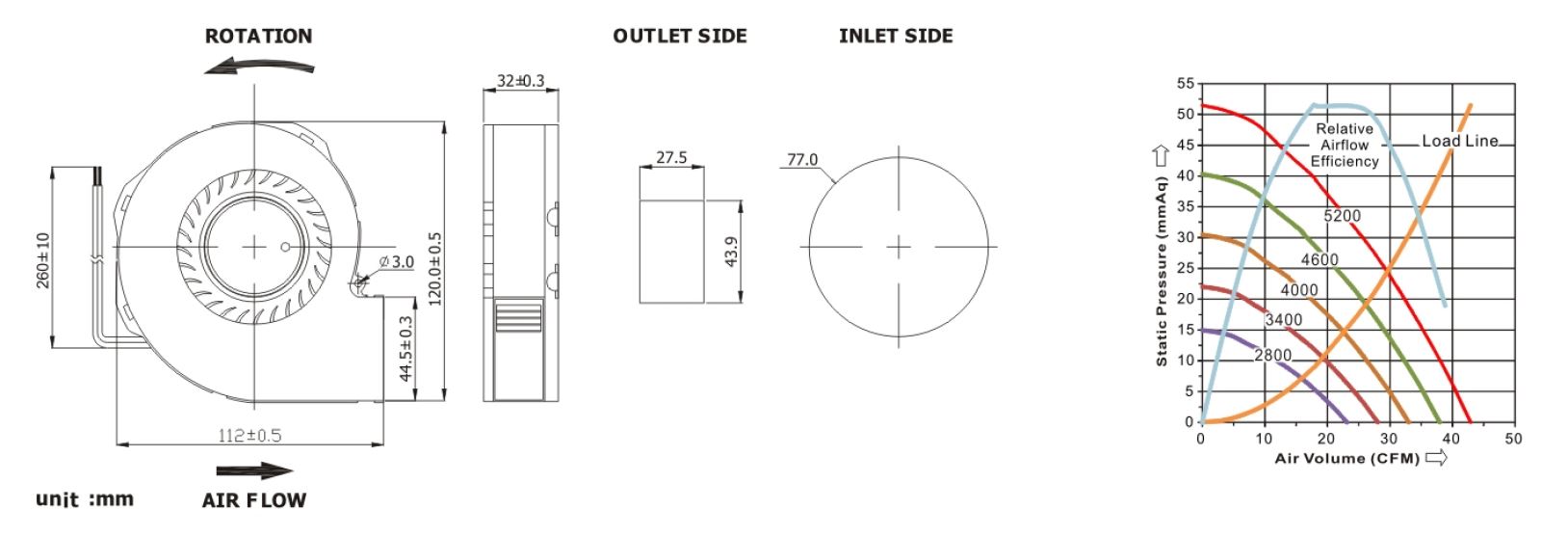

P series - 120x112x32mm
(4.72x4.41x1.26in) - 28 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 90000hrs @ 5200RPM @ 30℃
Frame--------------- Aluminum
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 260±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ---------- IP51, IP54, IP56, IP67
