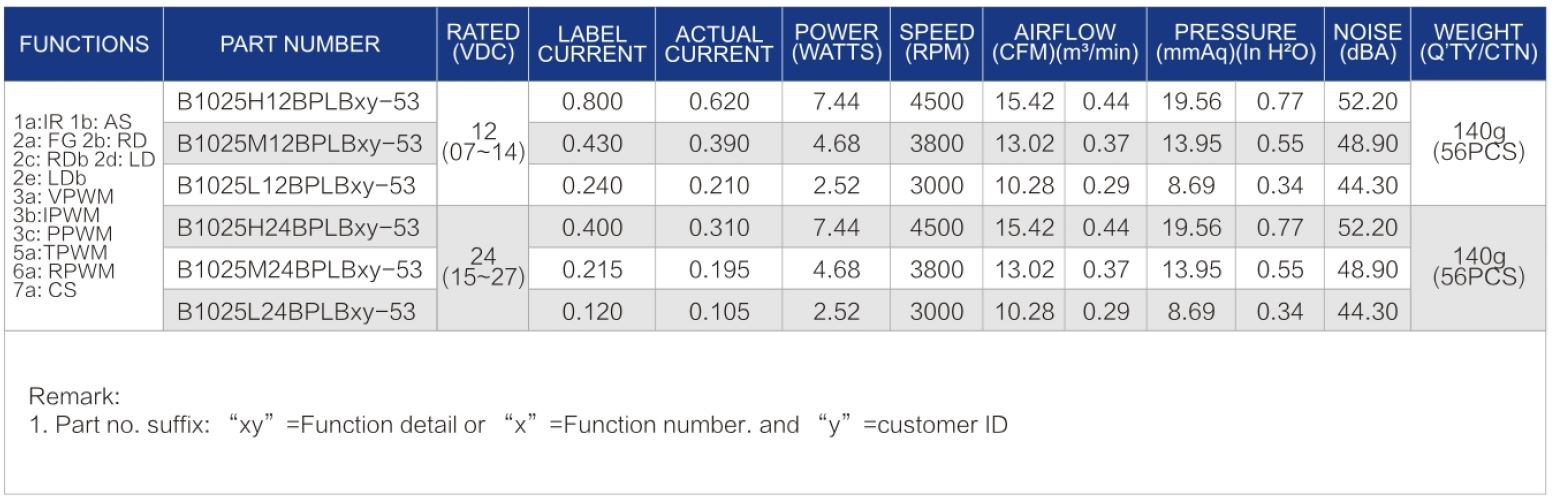

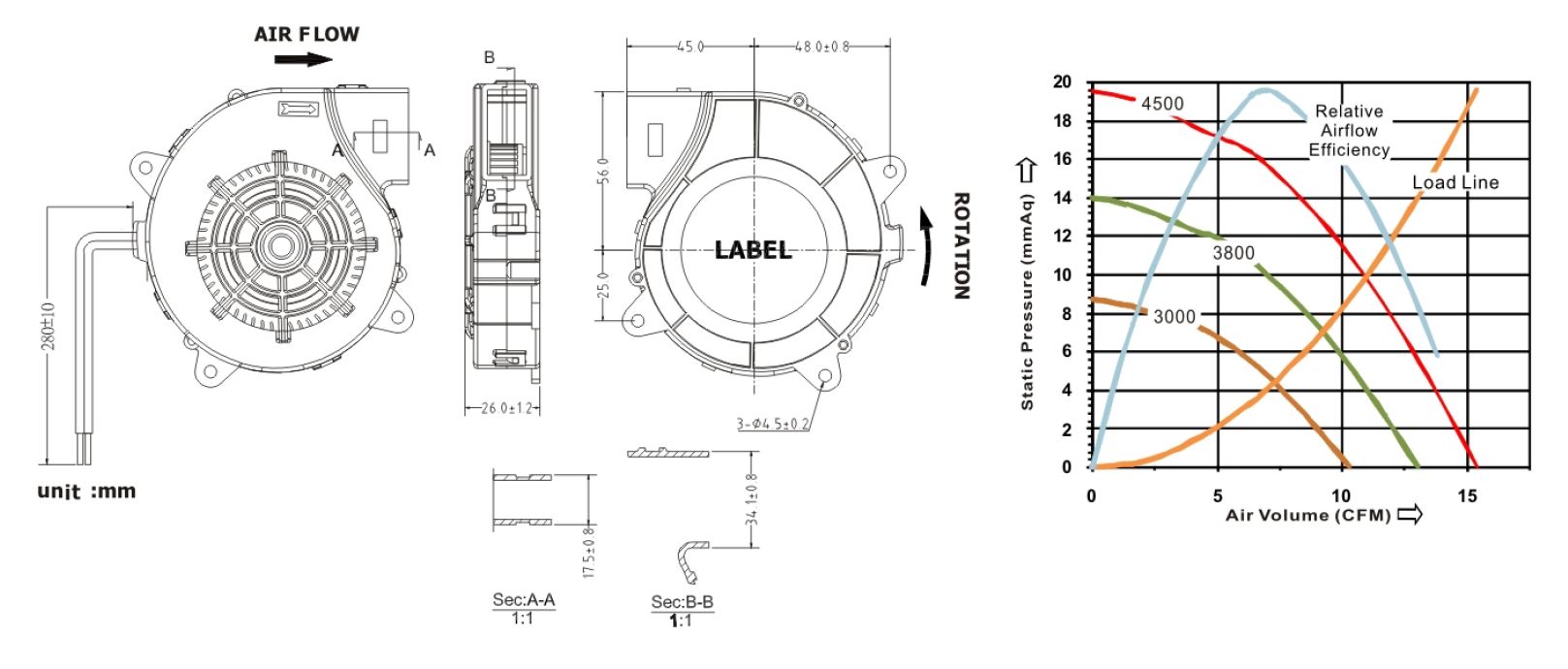

B series - 100x98x26mm
(3.93x3.85x1.02in) - 53 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 70000hrs @ 3500RPM @ 30℃
Frame--------------- Plastic Cover/Aluminum die cast Base
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 280±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ---------- IP51, IP54, IP56, IP67
