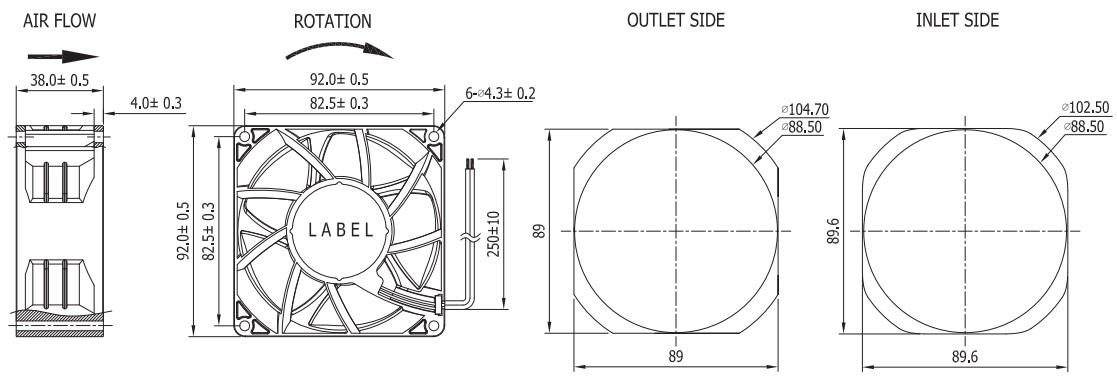

K series - 92x92x38mm (9238A)
(3.62x3.62x1.5in) - 5 blade

Bearing System---- 2 Ball Bearing
Life Expectancy---- Ball 70000hrs @ 10000RPM @ 30℃
Frame----------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller--------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire------------ UL 1061, AWG 22, 250±10mm, Red(+),Black(-)
Protection------------ Locked rotor protection
IP Grade  ------------ IP51, IP54, IP56, IP67, IP68
