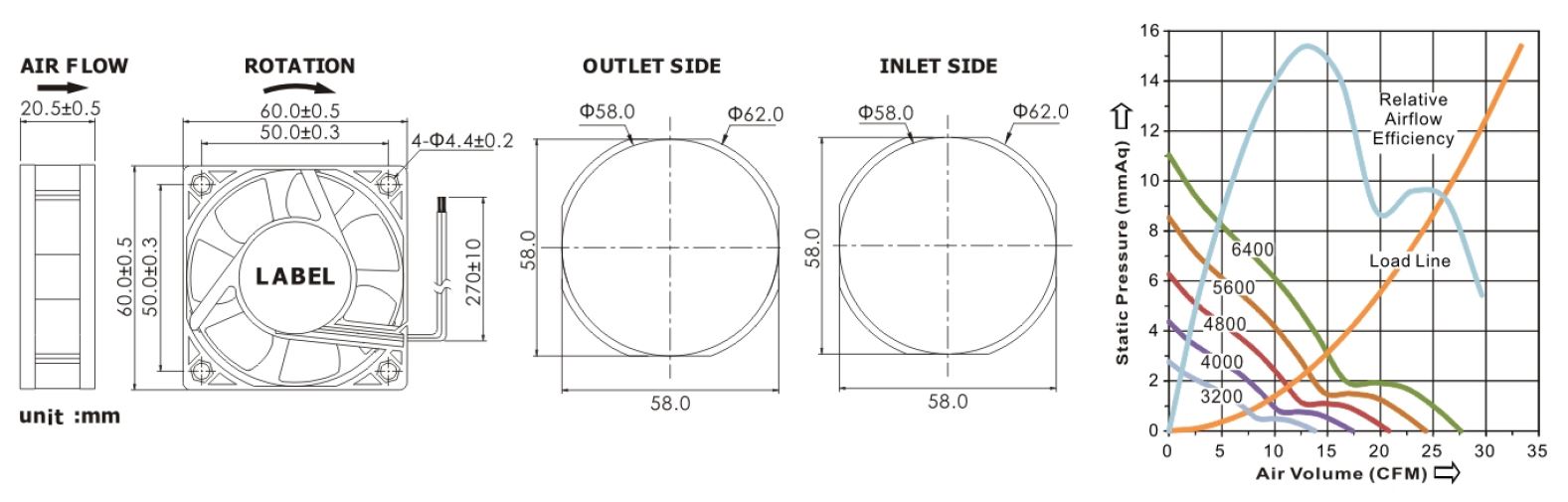

C/R series - 60x60x20mm
(2.36x2.36x0.79in) - 7 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 65000hrs @ 5600RPM @ 30°C
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 270±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ----------  IP51, IP54, IP56, IP67
