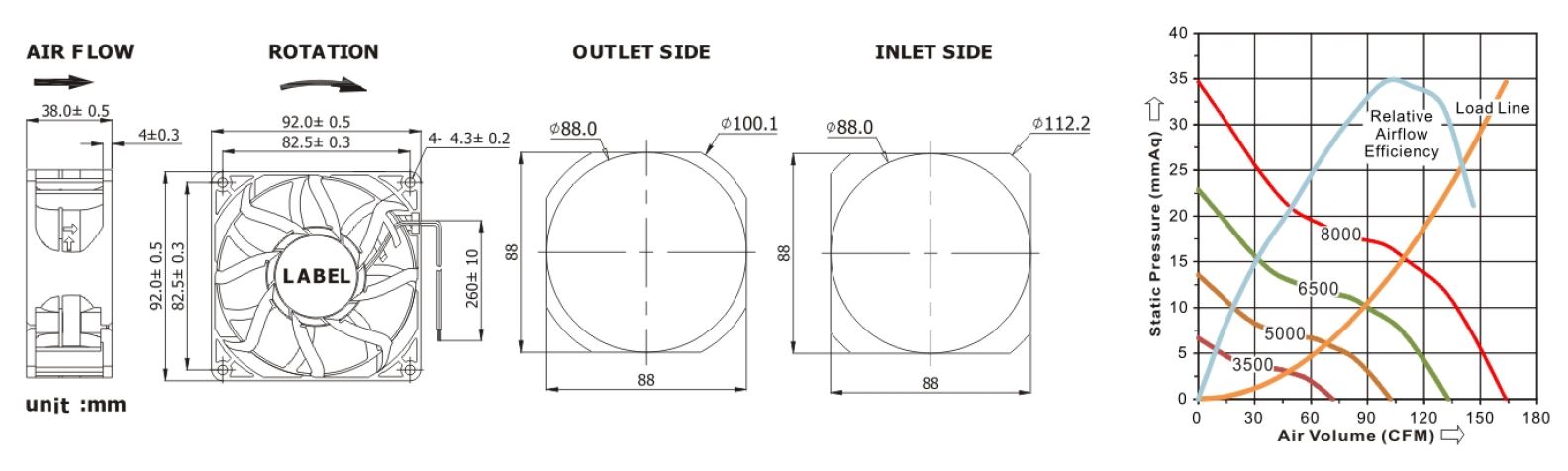

R/K series - 92x92x38mm
(3.62x3.62x1.50in) - 7 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 70000hrs @ 6500RPM @ 30°C
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 260±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ---------- IP51, IP54, IP56, IP67
