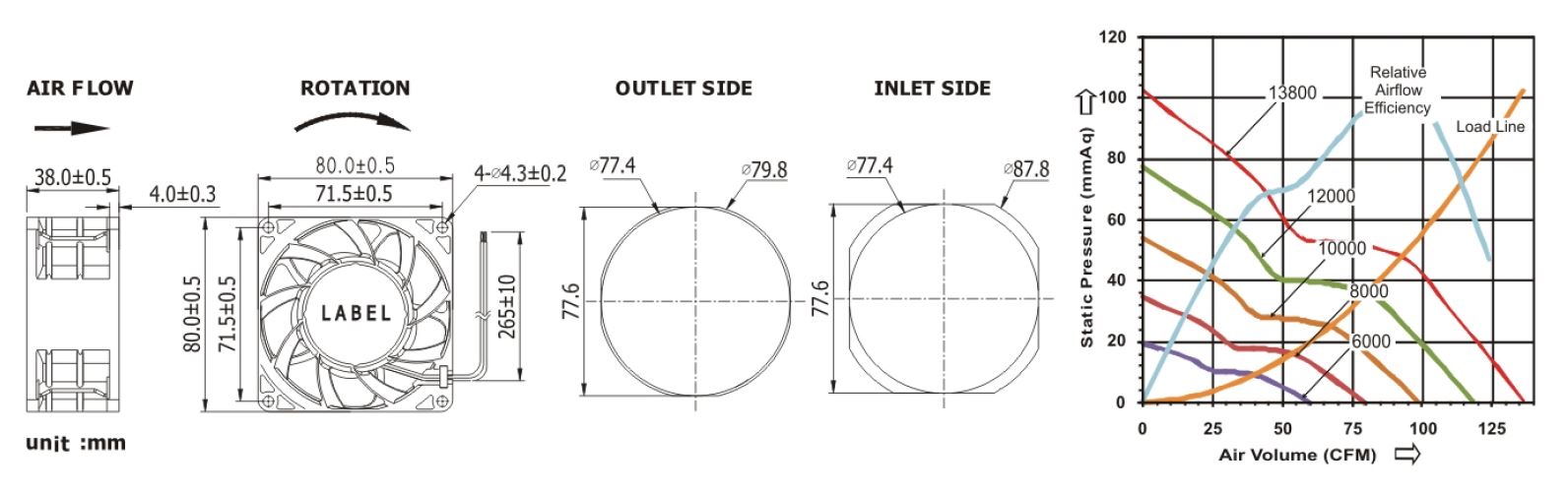

K series - 80x80x38mm
(3.15x3.15x1.5in) - 5 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 77000hrs @ 10000RPM @ 30°C
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 265±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ----------  IP51, IP54, IP56, IP67
