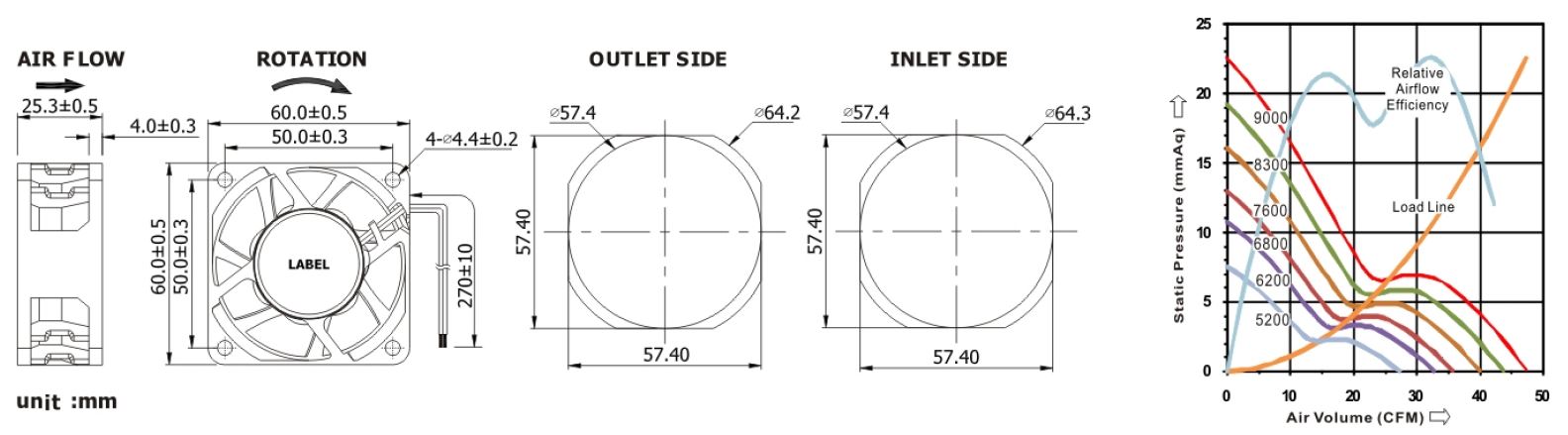

C/D series - 60x60x25mm
(2.36x2.36x0.98in) - 7 blade

Bearing System---- 2 Ball Bearing
Life Expectancy---- Ball 70000hrs @ 6000RPM @ 30℃
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 270±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ----------  IP51, IP54, IP56, IP67
