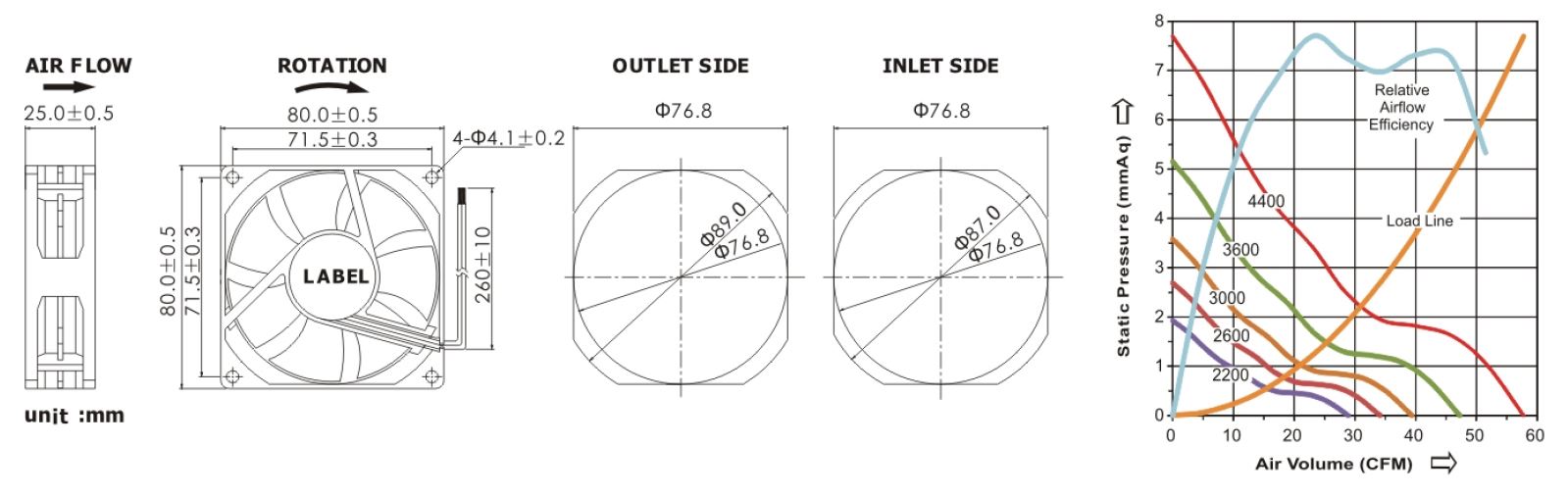

D series - 80x80x25mm
(3.15x3.15x0.981.0in) -7 blade

Bearing System--- 2 Ball Bearing, Long Life Sleeve Bearing(SBS)
Life Expectancy--- Ball 70000hrs, SBS 50000hrs @ 3600RPM @ 30℃
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 265±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ----------  IP51, IP54, IP56, IP67, IP68
