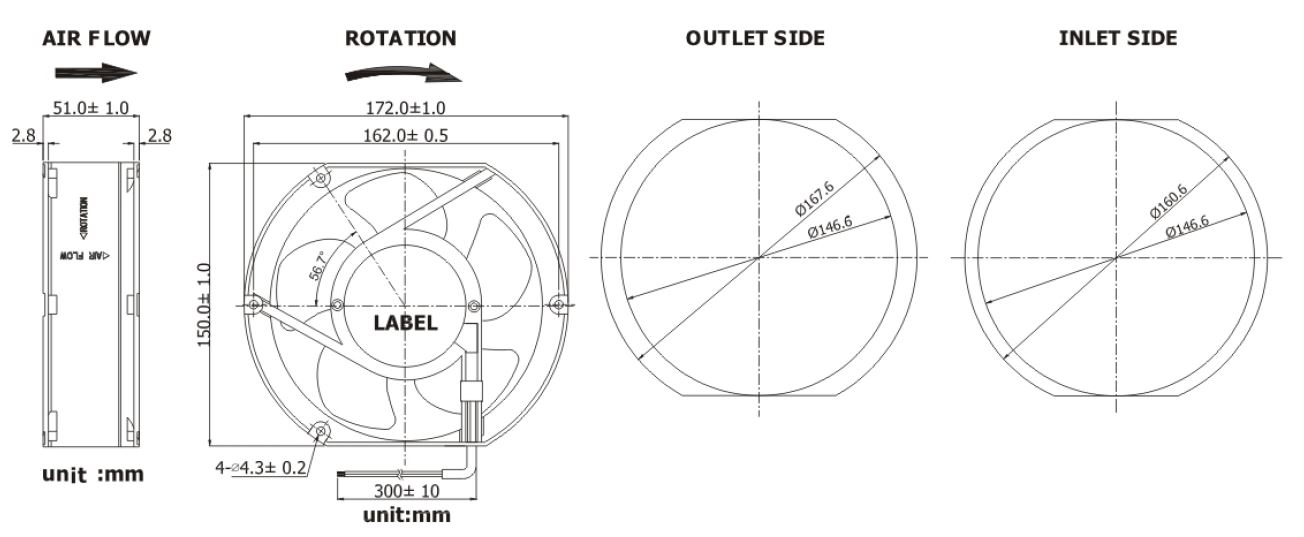

172x150x51mm
(6.77x5.90x2.01in) - 5 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- 100000hrs @ 2800RPM @ 30℃
Frame--------------- Aluminum
Impeller------------- Thermoplastic PBT+15% GF, UL94V-0
Lead Wire---------- UL 1015, AWG 22, 300±10mm, Black
Protection---------- Locked rotor protection
IP Grade ----------Optional
