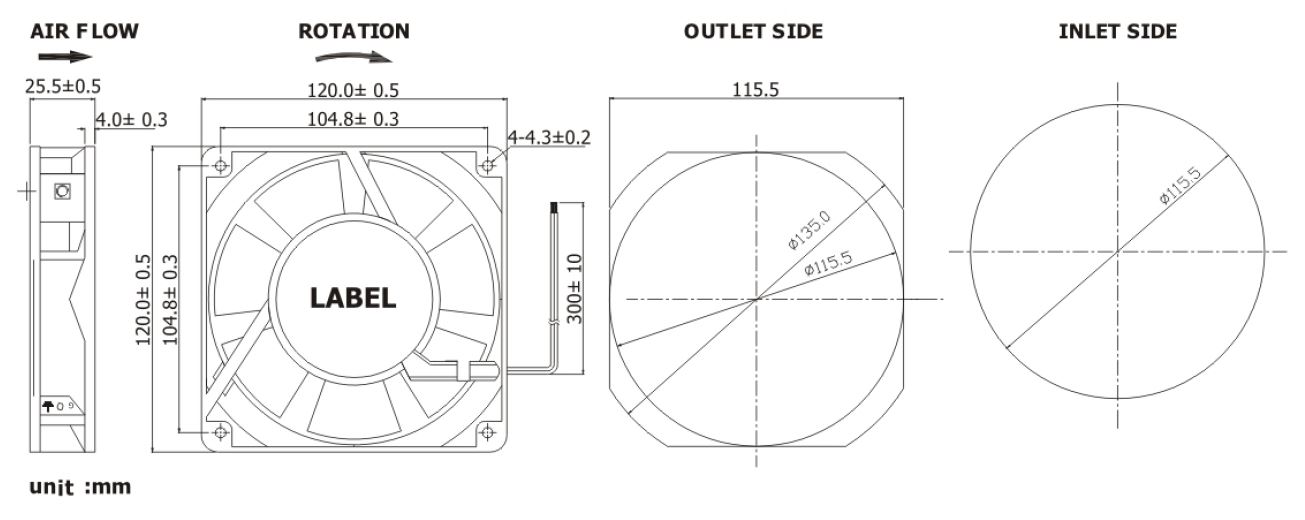

120x120x25mm
(4.72x4.72x0.98in) - 7 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- 100000hrs @ 2800RPM @ 30℃
Frame--------------- Aluminum
Impeller------------- Thermoplastic PBT+15% GF, UL94V-0
Lead Wire---------- UL 1007, AWG 22, 300±10mm, Black
Protection---------- Locked rotor protection
IP Grade ----------Optional
