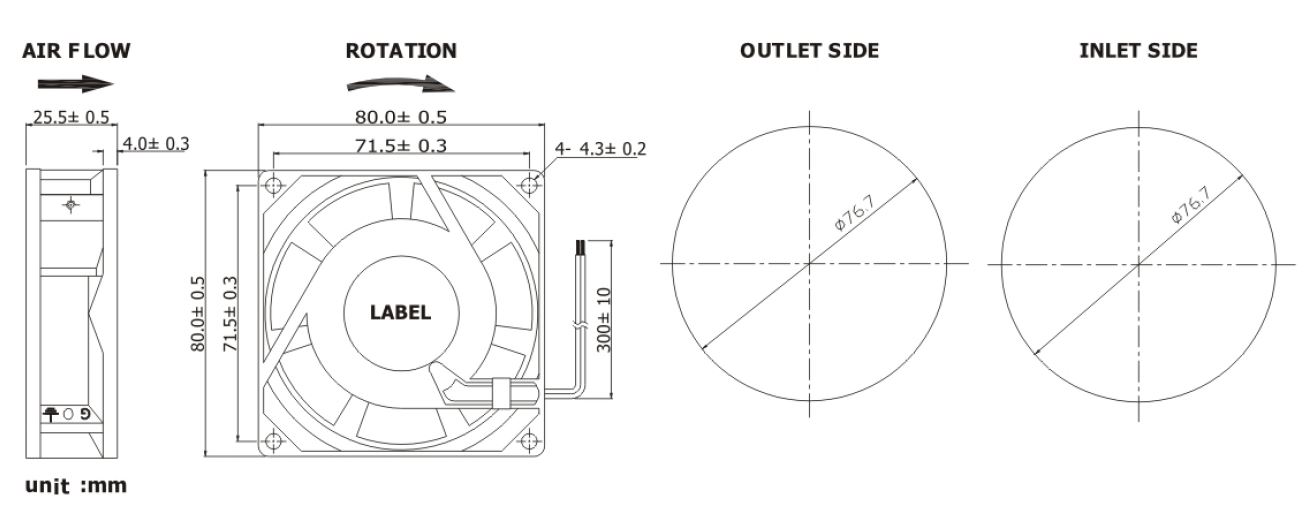

80x80x25mm
(3.15x3.15x0.98in) - 7 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- 100000hrs @ 2500RPM @ 30℃
Frame--------------- Aluminum
Impeller------------- Thermoplastic PBT+15% GF, UL94V-0
Lead Wire---------- UL 1007, AWG 22, 300±10mm, Black
Protection---------- Locked rotor protection
IP Grade ---------- Optional
