/ EN

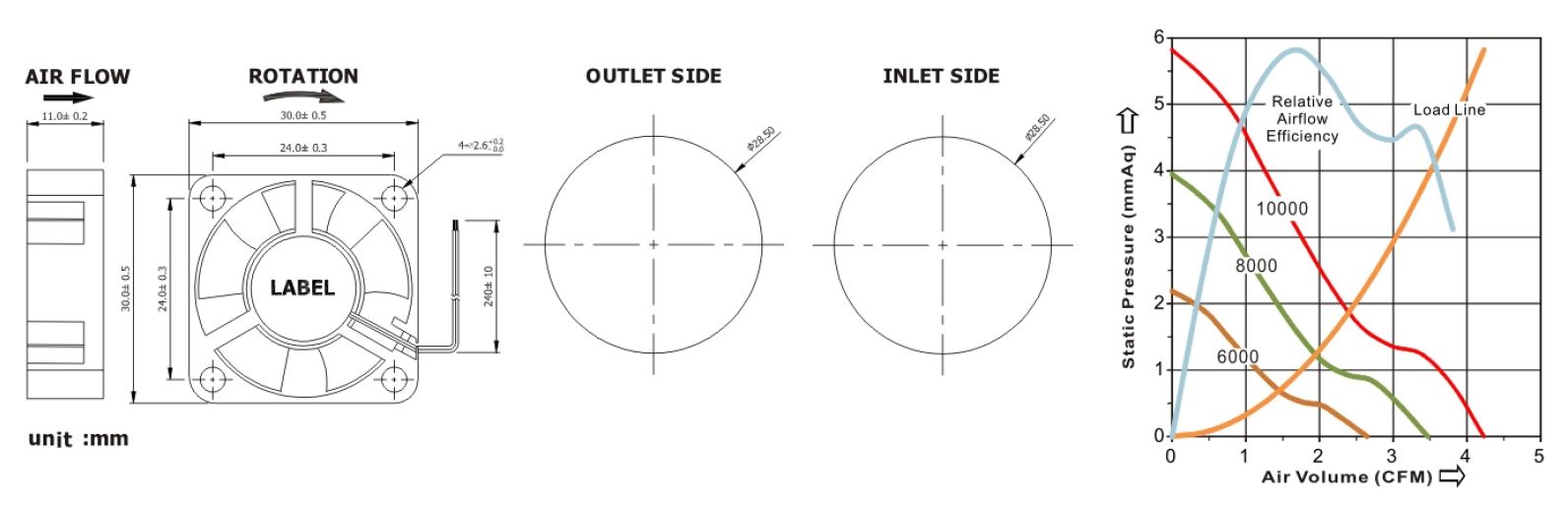

D series - 30x30x10mm
(1.18x1.18x0.39in) - 5 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- 100000hrs @ 10000RPM @ 30℃
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1061, AWG 28, 240±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ----------  IP51, IP54
